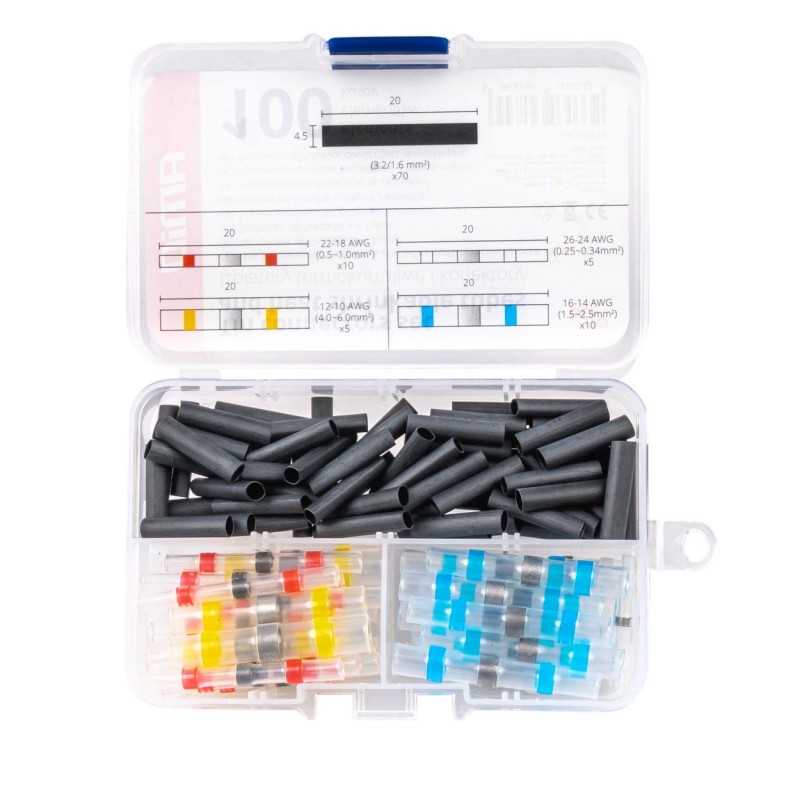

Set of shrink tubes 100 pcs

SHRINK CONNECTORS WITH TIN AND TUBES 100 pcs



• Easy cable connection in one step
• You perform 3 activities at once - soldering, insulating and sealing
• Polyolefin tube on the outside and tin on the inside
• Solder and seal and advanced waterproof function
• Polyolefin shrink connectors improve pull-out strength, sealing, strain relief, cable control and insulation
• style="font-size:9pt;font-family:Arial;margin:0pt;text-align:left;line-height:1.2;list-style-type:disc;background-color:transparent;"> Supplied in a sturdy bulk pack for easy sorting.



Durable - excellent resistance to stretching and mechanical damage; Perfect transparent heat shrink tubing for tensile strength; High flexibility.



Tin inside - For best results, use hot air until it shrinks and the melted glue fills the gaps in the t-shirt. During heating, rotate the joint continuously so that the t-shirt heats up evenly.



Waterproof - Polyolefin hoses on the outside and hot melt adhesive on the inside provide excellent water resistance, can be ideal for marine and automotive, home and electronic applications.

sans-serif;background-color:#ffffff;margin:0pt;line-height:1.2;font-size:14px;">

• Minimum soldering temperature until melting: 138°C
• Minimum shrinkage temperature: 80°C
• Working temperature: -55°C - 125°C



Diameter of electrical wires:



• White: 0.25-0.34 ² mm - 5 pcs
• Red: 0.5-1.0 ² mm - 10 pcs
• Blue: 1.4 -2.5 ² mm - 10 pcs
• Yellow: 4.0-6.0 ² mm - 5 pcs
• Black T-shirts - 70 pcs



Size of heat shrink connectors:



• Red: diameter 3.0 mm
• White: diameter 1.5 mm
• Yellow: diameter 6.0 mm
