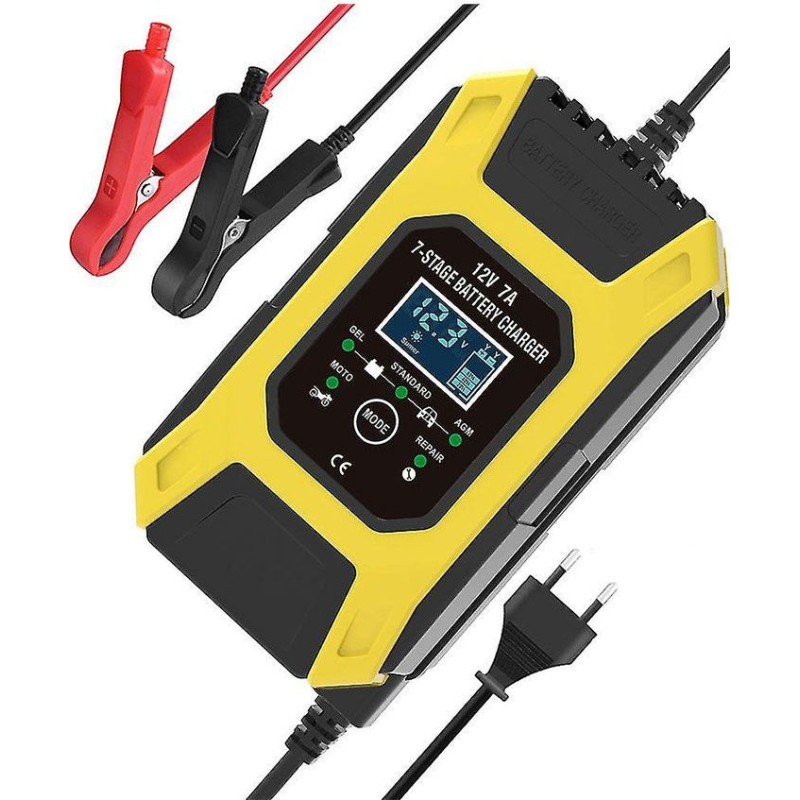

Charger with automatic CARSPA 12V/7A

Automatic charger for Pb batteries with a current of up to 7A, enabling a permanent connection with the battery being charged. It is equipped with a battery regeneration program and a choice of battery type (AGM, AGM GEL, STANDARD, MOTO). 7-step automatic charging.
Specifications:
• Input voltage: 100-240VAC, 50-60Hz
• Rated power: 12V 7A
• Minimum starting voltage: 7.0V
• Charged batteries: Pb 12V
• Battery capacity range: 6-150Ah
• Short circuit protection
• Overvoltage protection
• Protection against overheating
• Fan
• Thermal protection: 65 ° C +/- 5 ° C
• Efficiency: App. 85%
• Compliant standards: CB, CE, IEC60335, EN61000, EN55014
• Weight: 470g

Instructions for use:
1) Connect the charging battery to the charging terminals of the charger. This is indicated by an acoustic signal (beep) and the display lighting up. The display shows the battery terminal voltage.
2) Connect the charger to the mains. Now you have about 10 seconds to change the charging mode (AGM, AGM GEL, STANDARD, MOTO, REPAIR) Then the charger will automatically go into the charging phase. The terminal voltage, charging current and charge level are shown on the display.
3) After reaching the desired terminal voltage (approx. 14.4V), the charger switches to float mode with maintenance voltage (for AGM 13.5V)
