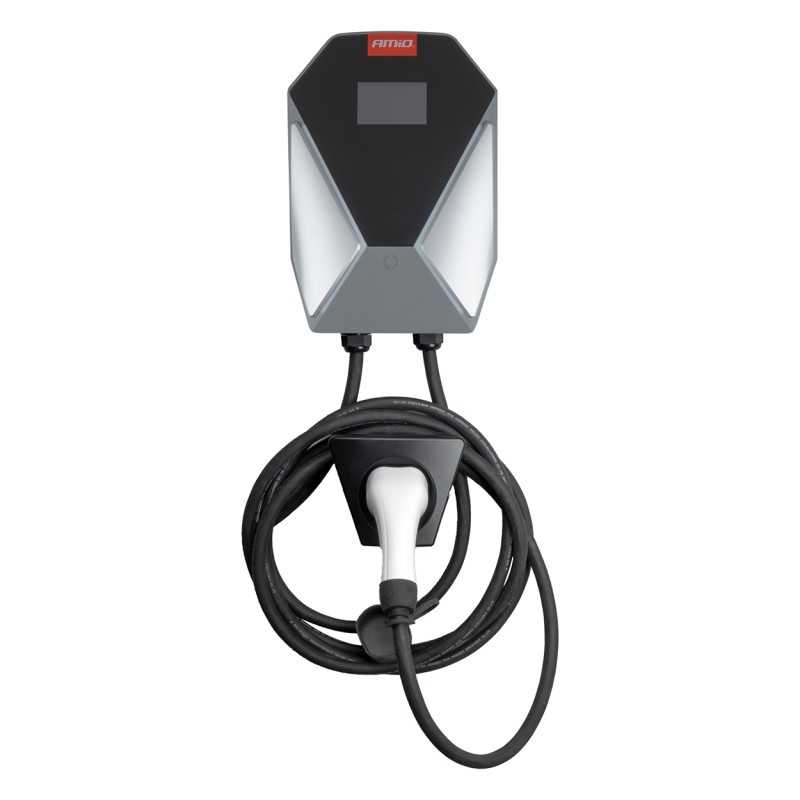

Three-phase charger for electric vehicles 11kW

Product description

The 11 kW electric vehicle wall charger is a three-phase device designed for professional AC installations in commercial, fleet and private applications. It combines high reliability, compliance with safety standards and convenience of everyday use.

The device operates in a three-phase 400 V system at a current of 16 A (50/60 Hz), which ensures stable and efficient charging of electric vehicles. The built-in LCD display allows a continuous overview of operating parameters, thereby increasing control over the charging process.

The advanced security system used includes:

current differential protection (AC/DC, sensitivity 0.2 mA),

against overload,

overvoltage and undervoltage protection,

against short circuit,

protection against current leakage to the ground,

grounding check.

The charger meets the requirements of IEC62752 and IEC62955 standards. The integrated RN8302B measurement module ensures high accuracy of energy measurement (error <0.1%, compliance with classes 0.5S and 0.2S), which allows for accurate billing of energy consumption.

The IP66 protection and IP55 plug provide high resistance to weather conditions, allowing safe operation both indoors and outdoors. The device operates in a temperature range of -30 °C to +50 °C, at a humidity of 5–95% and up to an altitude of 2000 m.

Technical parameters:

Power: 11 kW

Voltage: 400V

Current: 16 A

Type: AC, three-phase

Charging cable length: 5 m

Power cable cross-section: 5 × 2.5 mm²

Short-circuit current: 1500 A (IEC 62752:2016 + AMD1:2018)

The device was designed for intensive operation and ensures high durability and stability during long-term use.

Thanks to the combination of advanced protections, high measurement accuracy and convenient operation, the charger represents a practical solution for both corporate installations and private users who expect reliable and safe charging of an electric vehicle at home or in the company.
