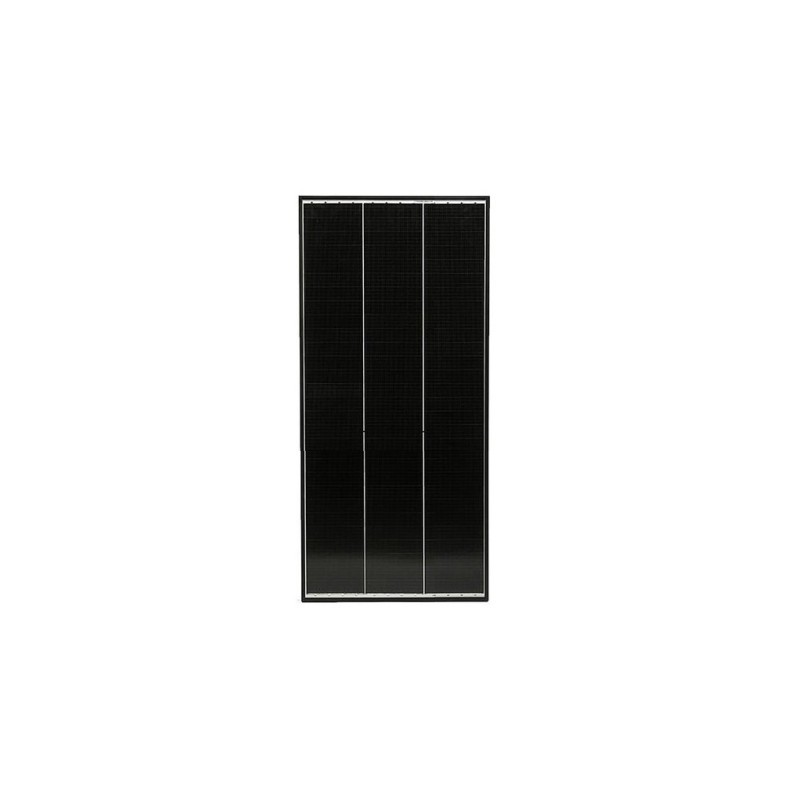

    solar photovoltaic panel SOLARFAM 110W monocrystalline

    solar4659

    Photovoltaic solar panel SOLARFAM 110W mono, BLACK frame, Shingle

    Kč2,541.00
    Tax included
    (2100,00 tax excl.)
    Ke zboží bude připočten recyklační příspěvek 4,57 KčTax included za ks
    OUT-OF-STOCK
  • Product availability

    * Required

    We will answer you as soon as possible.

    Close or

    Description

    Photovoltaic solar panel SOLARFAM 110W monocrystalline is a new series of panels with Shingle technology. The panel is equipped with innovative Shingle cells and its efficiency is 18.92%. As a result, the panel size is only 1080 x 510 x 30 mm and the panel has a power of 110 W. These panels are mainly suitable for building smaller "island" systems for places without electricity, such as cottages, caravans, gardens, etc.

    Main characteristics:

    - A low coefficient of dependence of voltage on temperature increases the efficiency of operation at high temperatures.
    - Outstanding low-light performance and high sensitivity to light across the solar spectrum.
    - Sealed waterproof multi-function junction box provides a high level of safety.
    - Powerful bypass (by-pass) diodes limit the power drop during shading.
    - The robust frame made of anodized aluminum facilitates the roof mounting of the panels in a variety of mounting systems.
    - Highly transparent tempered glass of the highest quality shows increased rigidity and impact resistance.
    - The advanced encapsulation system made of EVA (ethylene vinyl acetate) material with a three-layer protective film meets the strictest requirements for the safety of high-voltage equipment.
    - High performance panel with quick-release system with MC4 connectors.
    - Certifications and standards: PV Cycle, CE, ISO, TUV


    Product parameters:
    - Frame, material: aluminum
    - Guaranteed electrical performance 10 years 90% + 25 years 80% performance

    Parameters

    Interfaces and connectors

    Cable length [cm]: 45
    Connectors: MC4

    Power supply

    Power [W]: 110
    Maximum voltage (Vmp) [V]: 19.25
    Maximum current (Imp) [A]: 5.71
    Open Circuit Voltage (Voc) [V]: 22.75
    Short circuit current (Isc) [A]: 6.06

    Physical characteristics

    Number of articles: 36
    Operating temperature [°C]: -40 to 85
    Weight [kg]: 5.5
    Width [mm]: 510
    Height [mm]: 1080
    Depth [mm]: 30
    Frame color: Black

    In general

    Technology: Shingles
    Article Type: Monocrystalline
    Panel Type: Frame
