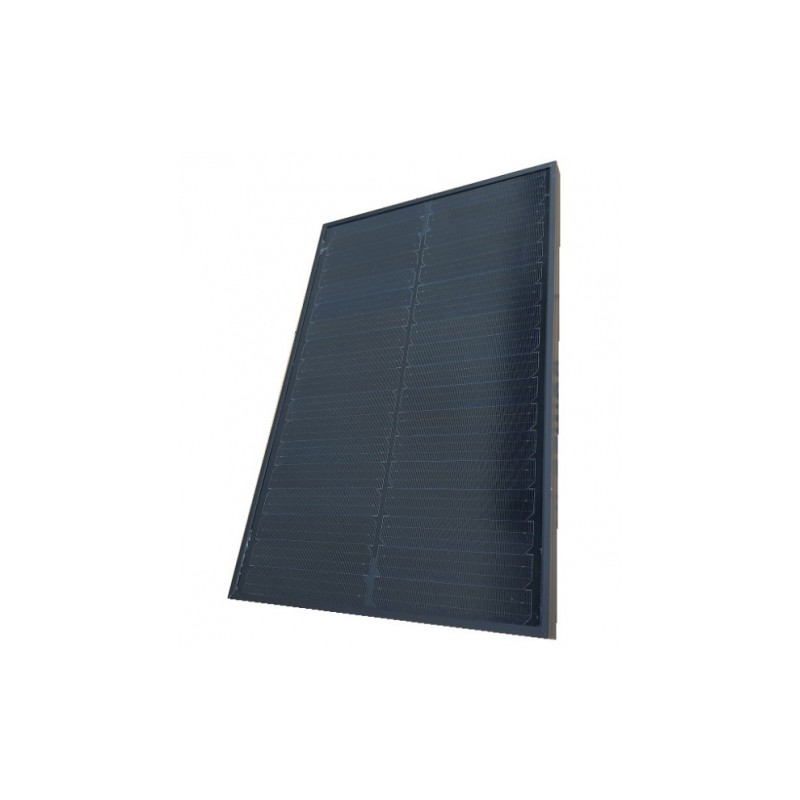

solar photovoltaic panel SOLARFAM 30W monocrystalline

The SOLARFAM 30W monocrystalline photovoltaic solar panel is a new range of panels with Shingle technology. The panel is equipped with innovative Shingle cells with an efficiency of 21.4%. As a result, the size of the panel is only 540 x 350 x 25 mm and the panel has an output of 30 W. These panels are mainly suitable for the construction of smaller "island" systems for places without electricity, such as cottages, caravans, gardens, etc.

Main characteristics:

- Low coefficient of voltage dependence on temperature increases the efficiency of operation at high temperatures.
- Exceptional performance in low light and high sensitivity to light in the entire solar spectrum.
- Closed waterproof multifunctional junction box provides a high level of safety.
- Powerful by-pass diodes limit the drop in power during shading.
- Robust anodized aluminum frame facilitates roof mounting of panels in a variety of mounting systems.
- Highly transparent tempered glass of the highest quality shows increased rigidity and impact resistance.
- Advanced encapsulation system made of EVA (ethylene vinyl acetate) with a three-layer protective film meets the strictest requirements for the safety of high voltage equipment.
- High performance panel with quick release system with MC4 connectors.
- Certifications and standards: PV Cycle, CE, ISO, TUV


Product parameters:

- Model: SZ-30-36M
- Max. power (Pmax): 30W
- Article type: Monocrystalline
- Number of articles: 36pcs
- Current at rated power (A): 1.70A
- Voltage at rated power (V): 17.65V
- Neutral voltage (V): 21.07V
- Short-circuit current (A): 1.79A
- Temperature range: -40 ° C to + 85 ° C

- Size: 540 * 350 * 30mm
- Weight: 3kg
- Connection type: box, terminal block
- Frame, material: aluminum
- Guaranteed electrical power 10 years 90% + 25 years 80% power
