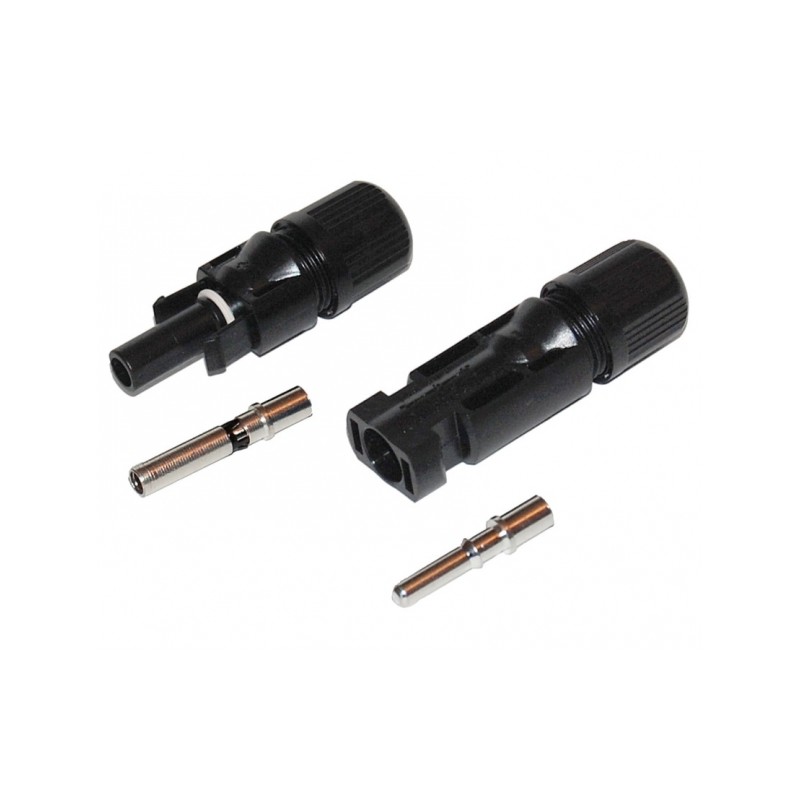

Solar Sunpulse SMC4 (1Par) solar connectors for photovoltaic panels

Product description:

- male + female metallic electric conductors for solar panels. It is used to connect solar panels with regulators or voltage transducers.

- Model No .: SMC4

- Max.system voltage: 1000V

- Rated impulse voltage: 8000V

- Rated insulation voltage: 6000V

- Rated current: 22A (2.5m), 30A (4m, 6m)

- Contact resistance of the connector: ≤ 5m?

- Drawer pin diameter: 4 mm

- Protection: IP2X / IP67

- Operating temperature: - 40C ... 85C

- Isolatedmaterials: PC / AC

- Contact material: copper, silver plated

- Closing system: snap
