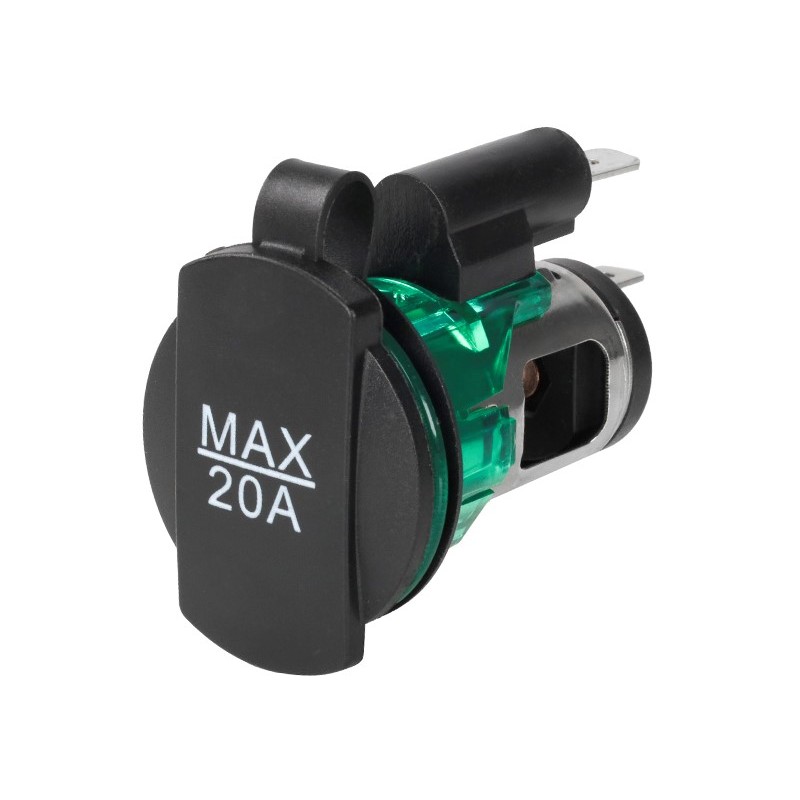

CL socket EURO, 12/24V, 20A max

Usage:

1. Make a hole with a diameter of 26 mm.

2. Place the drawer in it.

3. Secure the sleeve with 2 screws.

4. Connect the red wire to the positive (+) pole.

5. Connect the black wire to the negative (-) terminal of the outlet.

6. Use 6.3 mm wide clips to connect the wires.

7. It is advisable to connect the socket with a 15A fuse.

Important!

1. Before installing make sure the power is turned off to avoid the risk of electric shock.

2. When connecting the wires, be sure to connect the red wire to the positive (+) pole and the black wire to the negative (-) pole to ensure correct polarity.

3. Do not exceed electrical limits as this may cause overheating and damage to the outlet and other electrical components.

Technical Specifications:

12/24V max 240W/20A

GREEN BACKLIGHT

EURO TYPE
