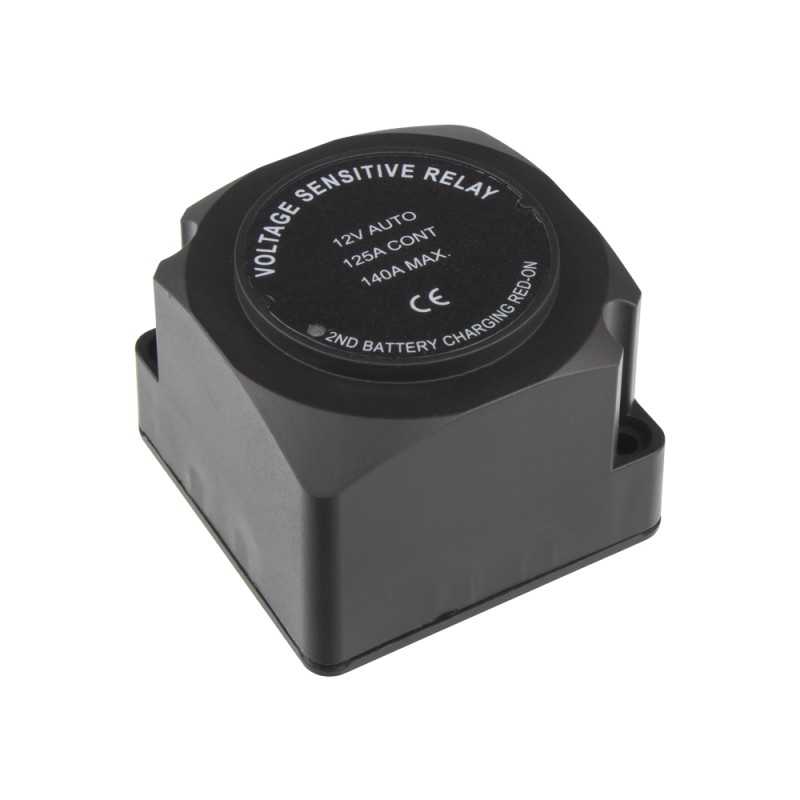

Automatic relay 12V 140A for connecting a second battery.



Properties

fully automatic operation

relay switching when voltage reaches 13.3 V

relay disconnection p class="rtfdocfont2"style="font-size:9pt;">when the voltage drops below 12.8 V

simple three - wire battery connection​

surge protection​

LED indicator​

high​ style="font-size:9pt;"> LED connection level

DC current 125 A​

maximum current 140 A​​​

no voltage drop , thanks to high-quality components

style="font-family:Symbol;font-size:9pt;"> monitors the voltage of both batteries

consumption in the switched-on state: 1 0 mA

consumption in switched state: 3 3 0 mA

consumption in economy mode: 0 mA (if the engine is not running , the relay is de -energized) determine ( it will switch to this mode at some point)

battery connection using M6 contacts



Dimensions

69 mm (L)

69 mm (W)

58 mm (D)



<p style="margin:0px;color:#212529;font-family:Tahoma;font-size:12px;background-color:#ffffff;"> Connection :​

black wire – ground​

contact M6 – starter battery + 12V

contact M6 – secondary battery +12V

yellow wire - manual relay switch -12V​​​

black loop - possibility of connecting a relay on indicator light ( -)

red loop - manual​​ class=" rtfdocfont2 "style="font-size:9pt;"> relay switching +12V



Operation:

Using this relay it is possible to charge 2 batteries simultaneously . When the engine is started and the starter battery reaches a voltage of 13.3V, the relay connects the 2 batteries in parallel (starter and secondary) which are then charged simultaneously . When the voltage drops below 12.8V (for example when the engine is switched off ), the relay is disconnected and the two batteries are separated. This system This prevents the starter battery from being discharged and protects sensitive electronic equipment connected to the secondary battery from voltage peaks that may occur, for example, when starting the engine. The intelligent electronics switch the relay , for example , when charging the secondary battery from a solar panel, thus enabling the starter battery to be recharged as well.
