The user manual is part of this product. It includes and provides important information on safety, use and disposal. Please read this manual before using the product and keep it for future reference!
RED To +12/24V (3A fuse) BLACK To ground YELLOW connect with yellow other light to achieve sync.
To synchronize the lights
Connect all YELLOW wires together
For an alternating arrangement of lights
1. connect YELLOW wires of all lights.
2. divide all the lights into 2 groups.
Connect the WHITE wires of one group and connect them to RED for alternating, leave the WHITE wires of the other group unconnected.
TECHNICAL SPECIFICATIONS:
• ECE R65, ECE R10, SAE certificates• working temperature: -30 °C to + 50 °C
• power supply: 12-24V
• degree of protection IP6K9K
• fixing with screws
• 1x light mode
Data sheet
Reference: 101100-035043
Brand: Erich Jaeger
the socket is delivered together with the seal 035043
Reference: LEDH15
Brand: Autolamp
Set of two LED bulbs replacing two H15 halogen bulbs

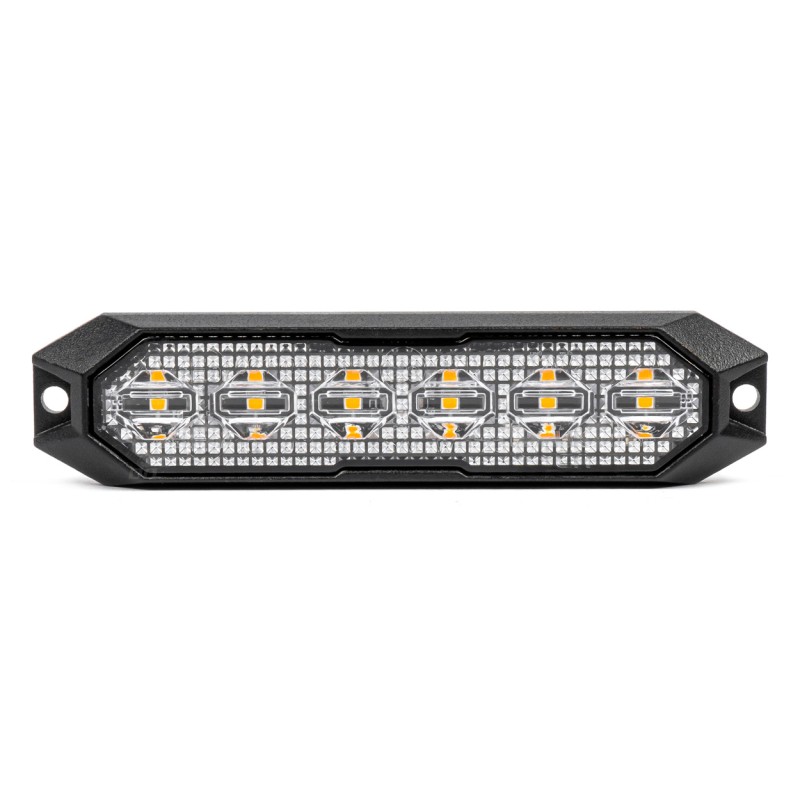

warning light LED orange PREDATOR 6*3W
