socket 12P/24V (VG 96923, MS75021-2 A-12S) NATO
The VG 96923 connector system was developed according to military requirements. All components have a NATO Stock Number (NSN). The system is used exclusively in the military sector to transfer lighting functions from the towing vehicle to the trailer.
| Name | 12P/24V Socket (VG 96923, MS75021-2 A-12S) |
|---|---|
| Product number | 151151 |
| Category | Socket |
| Standards | VG 96923, MS75021-2 |
| Industries | Defense vehicles |
| Voltage [in V] | 24 |
|---|
| Packaging | PE bag |
|---|---|
| NATO stock number | 5935-12-171-4800 |

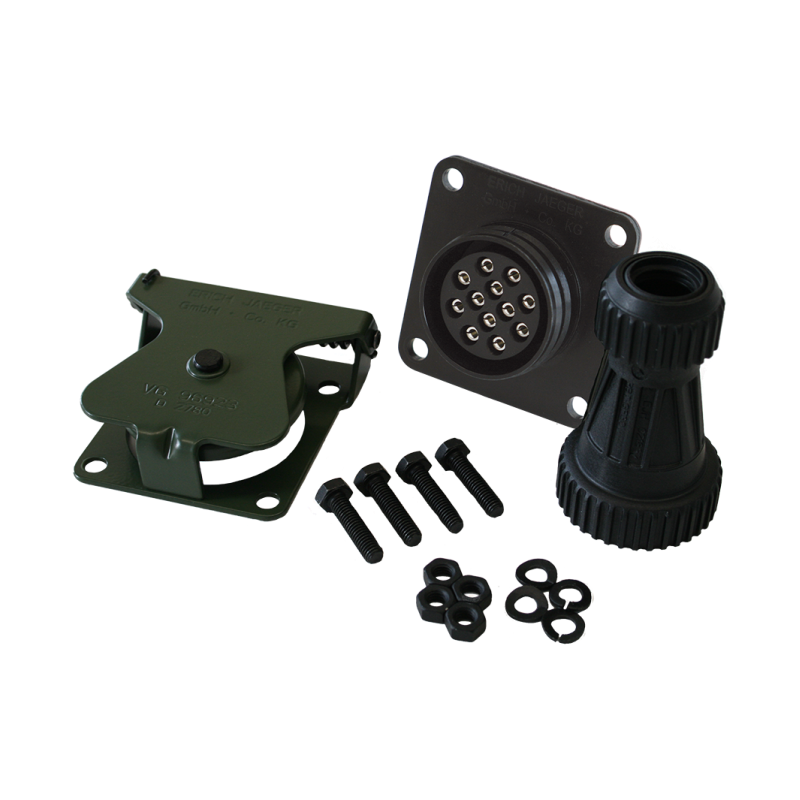

| Part of delivery | end cap K, contact sockets, cover cap F, mounting kit M6 |
| Seal type | screw cap |
|---|
| Case color | bronze green (RAL 6031-F9) |
|---|---|
| Contact surface | silver (Ag) |
| Cover material | resistant to metal |
| Case material | shatter resistant metal |
| Number of contacts | 12 |
|---|---|
| Contact version | contact case |
| Cable outlet | corrugated tube NW17 |
| End of contact | soldering contact |
| Addendum to the standard | A-12S |
|---|---|
| Protection | IP 67, IP X7 |
Data sheet
Reference: 251097
Brand: Erich Jaeger
Robust design dla standard NATO. Material - aluminum + polycarbonate. Designed for wire 35 mm2.
socket 12P/24V (VG 96923, MS75021-2 A-12S) NATO
