    plug-plug 3P plastic JAEGER opposite contacts
    • plug-plug 3P plastic JAEGER opposite contacts
    • plug-plug 3P plastic JAEGER opposite contacts

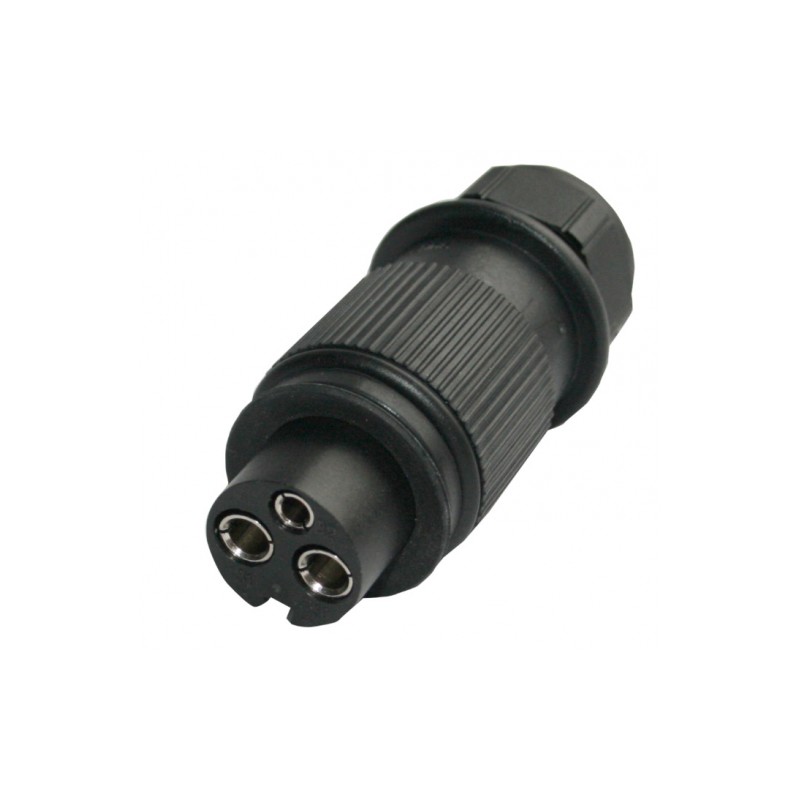

    plug-plug 3P plastic JAEGER opposite contacts

    251106

    3P/6-24V Plug (DIN 9680 - similar), opposite contacts

    CZK 164.56
    Tax included
    (136,00 tax excl.)
    IN STOCK

    • Product availability

    * Required

    We will answer you as soon as possible.

    Close or

    Description

    counter bite for 151165

    Product information

    Name 3P/6-24V Plug (DIN 9680 - similar)
    Product number 251106
    Description with socket contacts instead of pin contacts
    Category Plug
    Standards DIN 9680 - similar
    Industries Agriculture
    Electrical details and temperature resistance
    Voltage [in V] 6-24
    Design features
    Seal type screw cap
    data-toggle="collapse"data-target="#c-id--accordion-panel-attGroup-5">Material
    Contact pad color Black
    Case color Black
    Contact surface nickel (Ni)
    Case material reinforced composite
    Connection
    Number of contacts 03
    Contact version contact case
    Properties of plug-in contacts flat clamp
    Cable outlet union nut
    End of contact plug-in contact
    Norms and standards
    Protection IP 54, IP X4
    Measurements and dimensions
    For cable diam 6.00mm - 10.00mm
