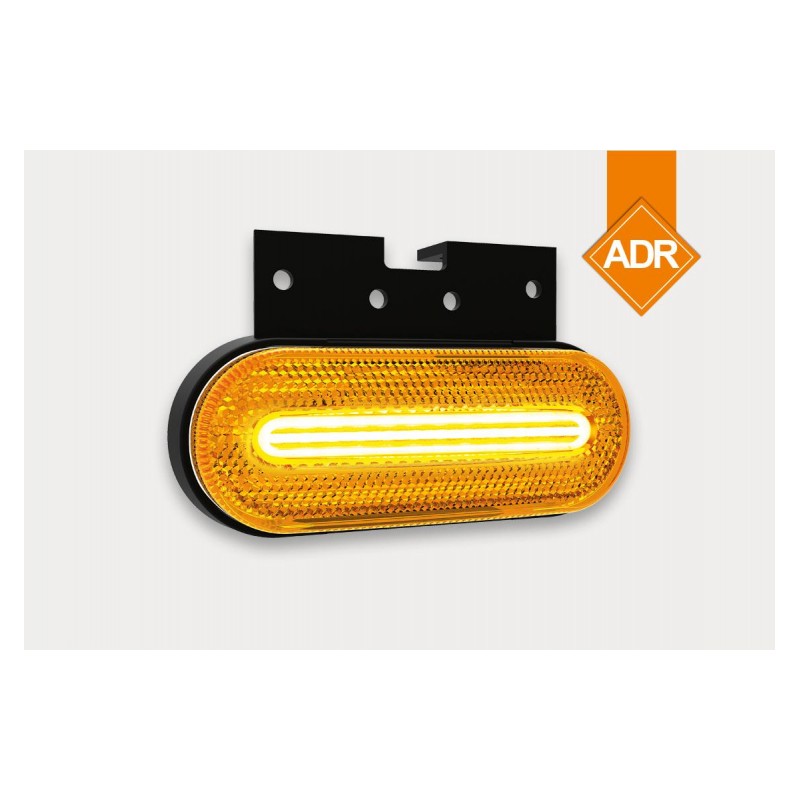

light position FT-070 12 + 24V orange + bracket

Homologation E9
Electromagnetic compatibility EMC certification
Shock resistant construction
Light connection polarization is optional
The light is ADR certified.

The FT-070 LED Light family uses NEW TECHNOLOGICAL SOLUTIONS.
Unique light design solution that increases the dust and resistance of light and electronic components to any external conditions.

The innovative “CLICK-ON” system, which is easy to install, has been used
and aesthetic appearance - no visible installation elements that connect the light to the car (underlay).
Marker lights are characterized by a high level of light emission and an interesting timeless design that will be visible on your travels.

Parameters:
- for voltage: 12-36V DC
- operating temperature: -40 ° C to + 55 ° C
- hermetically sealed, very resistant to water or moisture
El. consumption:
- white or orange light: 12V / 24V = 0.08A / 0.08A
Power consumption (rated power):
- 12 V / 24 V = 1.0 W / 2.0 W

Wiring connection:
Wire color - function
white - (-) minus skeleton
black - (+) plus

Notice:
Do not shorten the supply wires. Moisture can damage the internal electronics of the flashlight. Product with reverse polarity protection.
