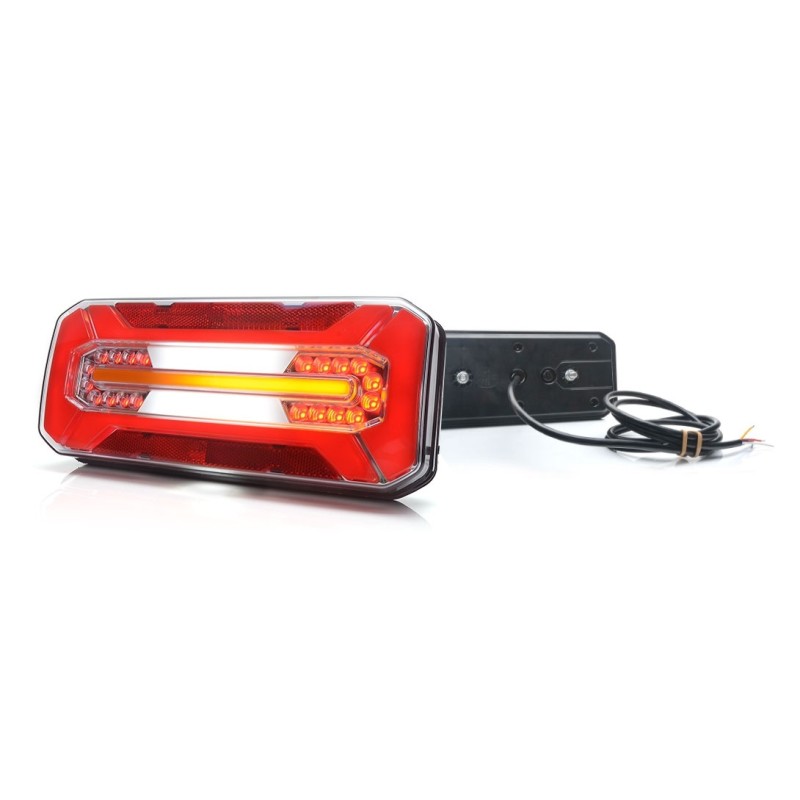

Rear light W185 / 1302 left + light RZ LED with dynamic blinker

New LED light from WAS

The new W185 LED Rear Combined Rear Lighting Series has an innovative design and distinctive appearance. The ice modules: the flash, the contour and the back are made of special material, so you do not see the individual points of light, just the shape of the light with a pleasant neon effect. The light housing and body are made of high quality plastic, scratch resistant, temperature factors and UV light. In addition, the EMC has a EMC approval and is easy to install on the vehicle.

Power consumption at voltage:

- contour: 1.3 W (12 V) or 2.5 W (24 V)

- side contour: 0.3W (12V) or brake light: 1.3 W (12 V) or 1.3 W (24 V)

- Direction indicator: 10.8 W (12 V) or 10.8 W (24 V)

- Reversing light: 4.5W (12V) or 4.5W (24V)

- Fog light: 1.6W (12V) or 1.6W (24V)

- SPL illumination: 0.4W (12V) or 0.8W (24V)

Light weight: 1.3 kg

IP class: IP 66/68

Approvals: E20, R10, R23, R7, R6, R38, R3, R4, R91

u0(mm): t 133 x 306 x 61

Mounting side: t left

Type el. connection: t conductor 6x0,75mm 200cm
