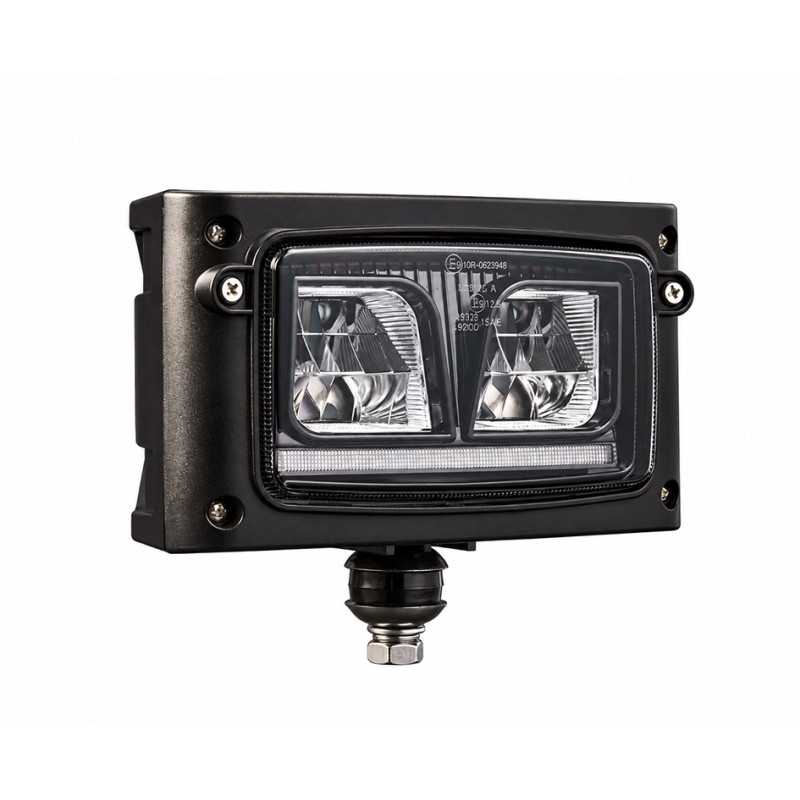

Front LED headlight TT.16623 L/R 12/24V

Main advantages

• 3 functions in one light – high beam, low beam and position light
• High light output of 4680 lm for good visibility
• Universal 9-32 V power supply for wide use
• Water and dust resistance thanks to IP67 protection
• E9, R10, R148 and R149 homologation for road use
• Modern LED technology with a power of 68.3 W
• Light temperature 5600–6500 K for pure white light
• Reduction of electromagnetic interference according to CISPR25 Class 3

Technical parameters

• Code: TT.16623
• EAN: 5907836150143
• Product type: front LED headlight
• Voltage: 9–32 V
• Power consumption / LED configuration: 68.3 W / 4 LEDs
• Luminous Flux:4680 lm
• Light color: 5600–6500 K
• Number of modes/functions: high beam, low beam, position light
• IP protection: IP67
• Approvals: E9, R10, R148, R149
• Interference reduction: CISPR25 Class 3
• Protection: IP67 dust and water protection
• Special function: combination of high beam, low beam and position light in one reflector

Package contents

• LED front reflector TT.16623
• Reflector holder

Installation note

Before installation, we recommend checking the vehicle voltage, mounting space and homologation requirements. The connection should be carried out by a person with knowledge of vehicle electrical installations.

Dimension (mm) <a href="https://www.ap-safranek.cz/762600778/parametric-filter?name=Rozm%C4%9Br++%28mm%29&value=191+x+111+x+117"style="box-sizing: border-box; background-color: transparent; color: #f99502;">191 x 111 x 117
