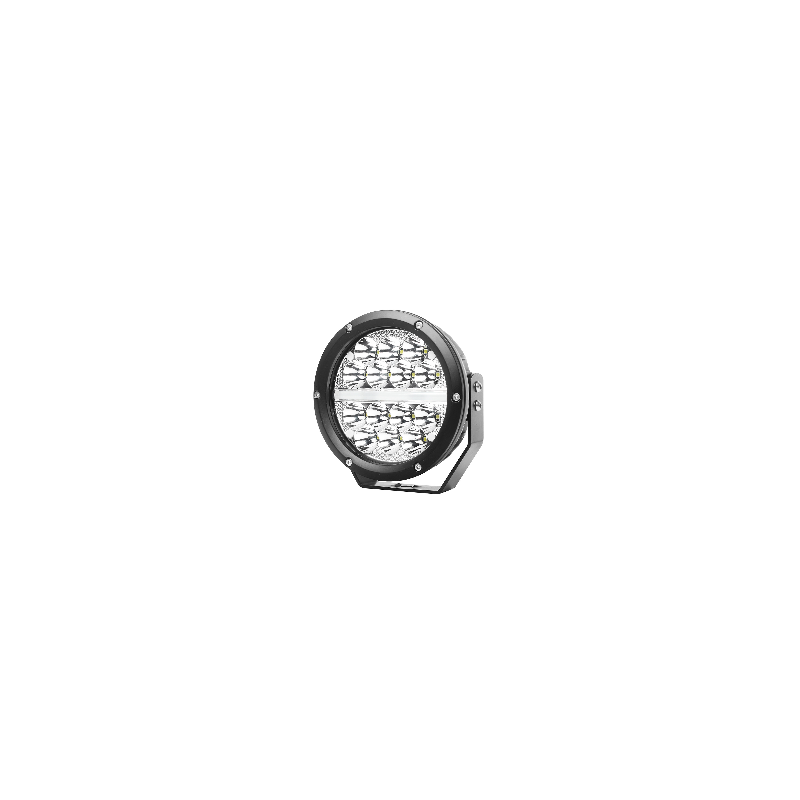

Headlight LED 7400 lm 12-24V homologation 18cm

LED high beam spotlight 52 W with position light
The headlight comes with a black cover

Position light placed horizontally in the middle of the reflector

High beam: 14 pieces * OSRAM LED
Position light: 12 pieces of LED

Remote current consumption at 13.8V: 3.6A (49.7W)
Position light current consumption at 13.8V: 0.15A (2W)

Luminous flux: 5690 lm
Reference number: 37.5

Illumination 1 lux at a distance of 550m

Beam angle: high beam 10°

Input voltage: 9-30V DC

Dimension: 177*191*83mm

Wire length: 24cm

connection:
black wire - negative
red wire + high beam
yellow wire + position light
