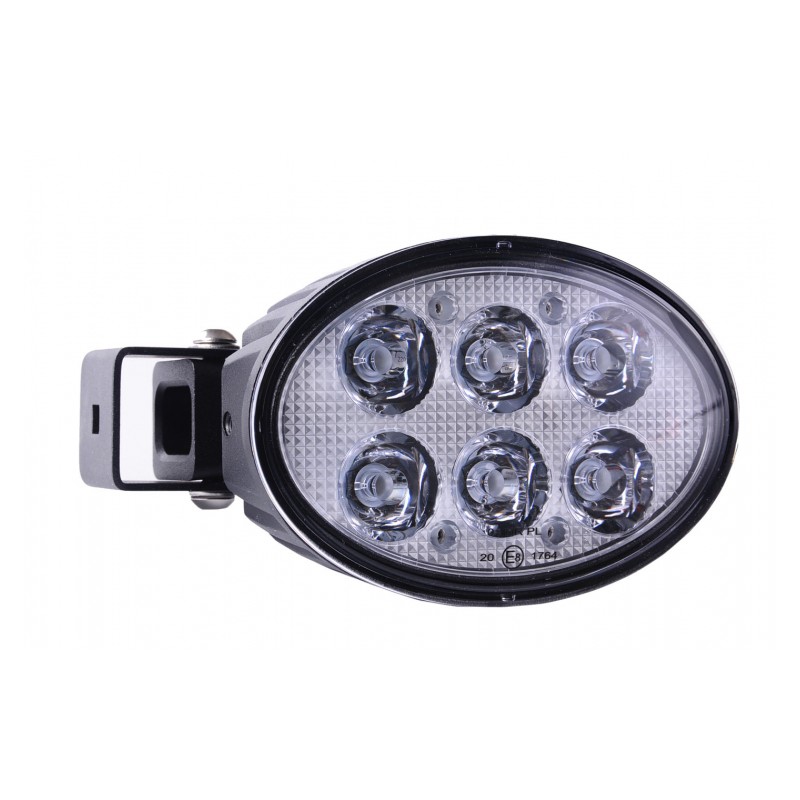

Headlamp with two ways of attachment - side and bottom
Homologated main beam headlamp
Two mounting options:
1 / console
2 / side mount (after removing the rubber cap on the back of the light)
for voltage from 10V to 60V
Luminous flux: 6600LM
road lighting at a distance of 301m: 1lux
radiating angle: 10 0
light color 6500K (daylight)
LED chips 6x10W
reverse polarity protection
the headlight is fitted with a DEUTSCH connector
power consumption at 13,8V: 3,3A (45,50W)
light is equipped with electronic temperature management (controls light output according to temperature)
degree of protection: IP68 / 69K
aluminum alloy body (ADC12)
Size: 155 * 105 * 70mm
front cover material: Lexan polycarbonate (PC)
operating temperature range: -40 ° C to + 60 ° C
weight: 1020g
service life: 50 000 hours
R112, R10 (CISPR25 Class-4), ECE, RoHS, CE certification
