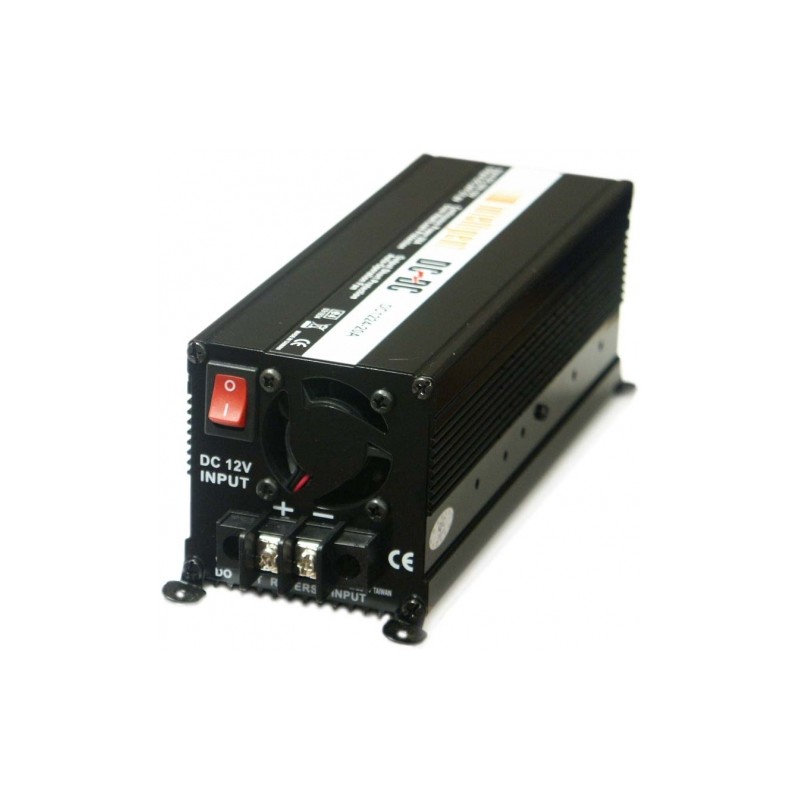

Drive for power appliances = 24V in cars. Input voltage = 12V, output voltage = 24V at 20A continuous load capacity. Cooling fan.
Technical parameters:
Input and output galvanically separated (isolated)
Input voltage: 10V to 15V =
output voltage: 24 V to 27.6 V =
current at no load: less than 80 mA
Continuous Output Current: 20A
Peak Output Current: 25A
alarm Low VST. Voltage: 10.5 V with a tolerance of 0.5 V
off at low vst. Voltage: 9.5 V with a tolerance of 0.5 V
Efficiency: more than 80%
Cooling: fan (yes
Protection: 1pc 1pc 40A and 20A inside the unit
dimensions: LxWxH: 73x73x190mm
Weight: 760 grams
The unit is cooled by a fan - to be placed in a ventilated area!
When installing the interior of the vehicle may be JKE of sharp edges
and protrusions that could endanger the safety of persons carried.
