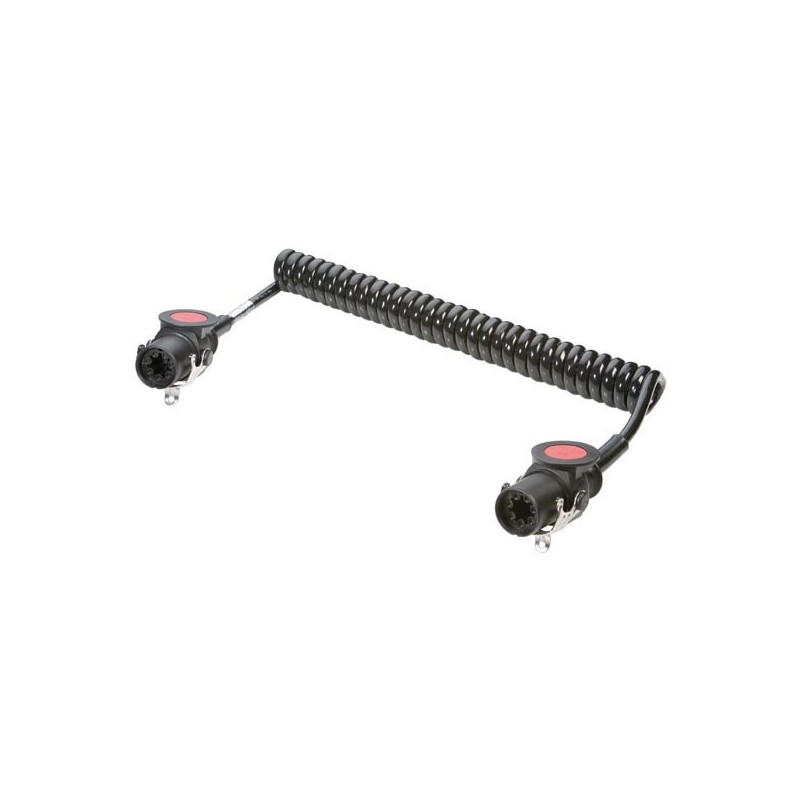

5P/24V Coil (ISO 7638-1 ABS, ADR)
| Name | 5P/24V Coil (ISO 7638-1 ABS, ADR) |
|---|---|
| Product number | 641115 |
| Category | Coil |
| Standards | ISO 7638-1 |
| Industries | Commercial vehicles |
| Voltage [in V] | 24 |
|---|---|
| Temperature resistance [in °C] | -40.0 - 100.0 |
| Packaging | without cover |
|---|
| Seal type | protective bend grommet |
|---|
| Cable color | Black |
|---|---|
| Case color | Black |
| Cover liner color | Red |
| Cable material | TPE |
| Case material | reinforced composite |
| Number of contacts | 05 |
|---|---|
| Number of plugs connected | 2 |
| Number of sockets connected | 0 |
| Cable outlet | protective bend grommet |
| Addendum to the standard | ABS, ADR |
|---|---|
| Protection | IP 54 |
| Max. extension length [vm] | 4.50 |
|---|---|
| Max. working length [vm] | 4.00 |
| Working length [m] | 3.00 |
| Wire cross section | 3x 1.5mm² + 2x 4.0mm² |
| Coil outer diameter [in mm] | 50.00 |
Data sheet
