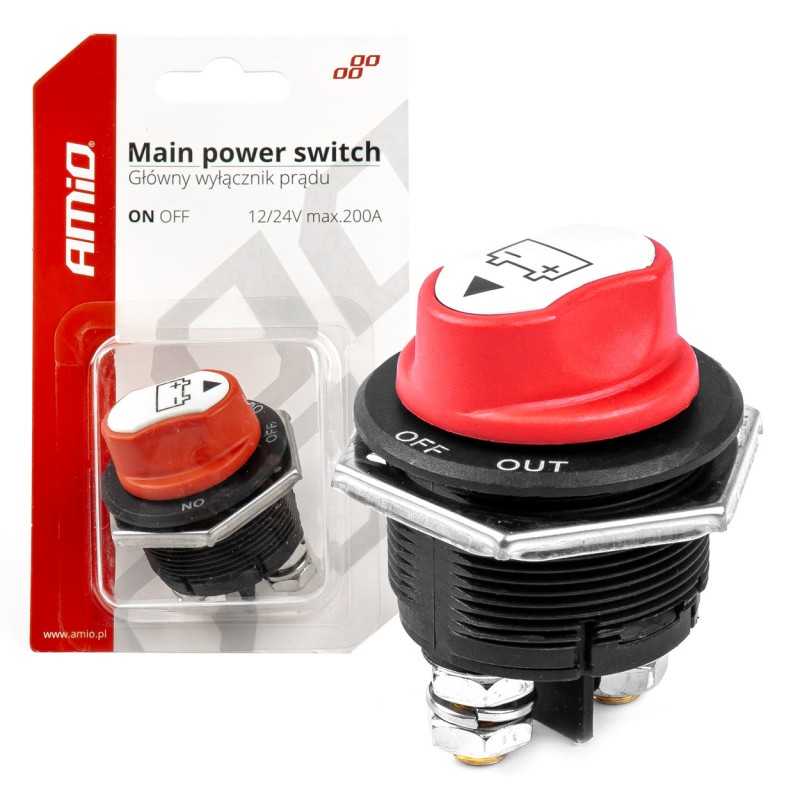

Battery disconnect switch 12/24V max. 200A

• WORKING CURRENT 200A
• INSTANTANEOUS CURRENT 300A
• PEAK CURRENT 1000A



<p style="-webkit-tap-highlight-color:transparent; box-sizing: border-box; outline: none; font-family: 'Open Sans', sans-serif; background-color: #ffffff; margin: 0pt; line-height: 1.2; font-size: 14px !important;"> 3-position universal built-in disconnector ON-OFF-OUT



• Mounting diameter: 38 mm
• Outer diameter: 45 mm background-color:transparent;">

Total height: 61 mm Mounting height: 20 mm Electrical connection: M8



Voltage: max. 32 V

12pt;font-family: Arial;">

Used in the electrical installation of cars and trucks, agricultural and construction machinery, caravans, motorboats, etc. where the possibility of disconnecting the power supply is required.



Disconnection - A single hand movement breaks the ground circuit, e.g.:

• before carrying out any repairs,

during long-term parking of vehicles, when charging the battery from the charger without removing it from the vehicle.



Usage:

• list-style-type:disc; background-color: transparent;">

The switch is used to quickly disconnect power in vehicles. It can serve as an anti-theft device or as a quick emergency power disconnect. The product is also useful in various types of car accidents.
