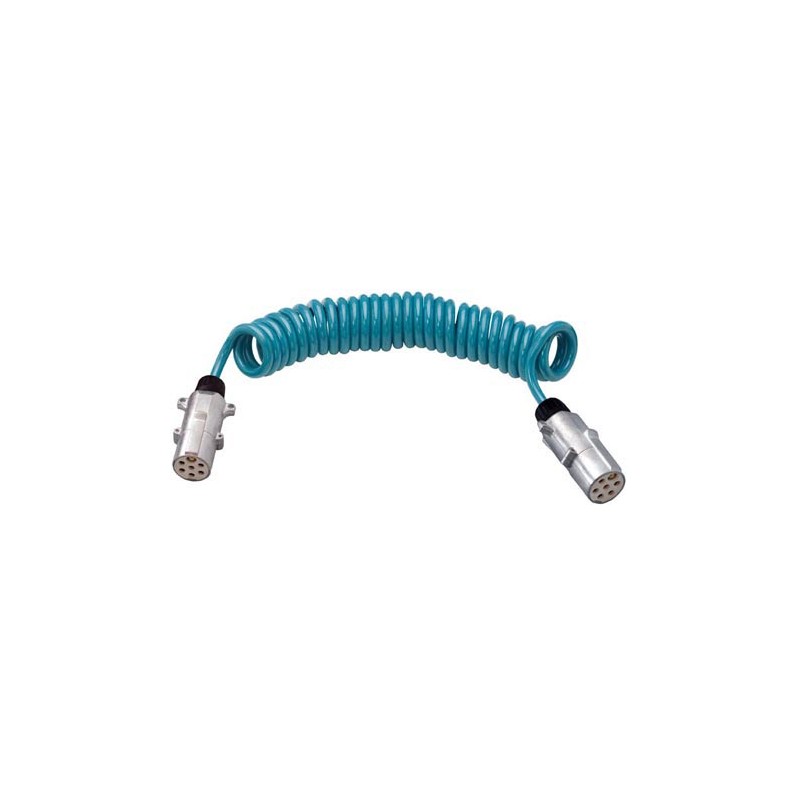

| Name | 7P/24V Coil (ISO 3731 - Type S) |
|---|---|
| Product number | 611035 |
| Category | Coil |
| Standards | ISO 3731 - Type S |
| Industries | Commercial vehicles |
| Voltage [in V] | 24 |
|---|---|
| Temperature resistance [in °C] | -40.0 - 105.0 |
| Packaging | PE bag |
|---|
| A special feature | Cable color JAEGER green (RAL 5021) cable - thermally and mechanically resistant polyurethane |
|---|
| Cable color | JAEGER green (RAL 5021) |
|---|---|
| Contact pad color | White |
| Case color | silver color |
| Cable material | PUR |
| Case material | shatter resistant metal |
| Number of contacts | 07 |
|---|---|
| Number of plugs connected | 2 |
| Number of sockets connected | 0 |
| Cable outlet | union nut |
| Protection | IP 44 |
|---|
| Max. extension length [vm] | 4.50 |
|---|---|
| Max. working length [vm] | 4.00 |
| Working length [m] | 3.00 |
| Wire cross section | 6x 1.0mm² + 1x 1.5mm² |
| Coil outer diameter [in mm] | 50.00 |
Data sheet
