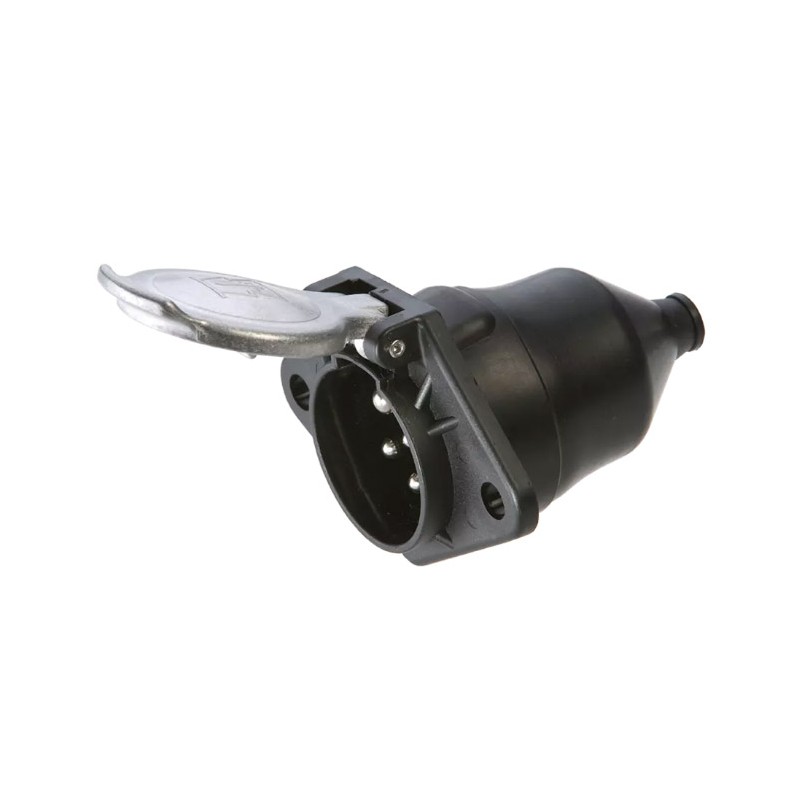

the socket is equipped with 6.3 mm pins, rubber seal
| Name | 7P/24V Socket (ISO 1185 - Type N) |
|---|---|
| Product number | 111009 |
| Category | Socket |
| Standards | ISO 1185 - Type N |
| Industries | Commercial vehicles |
| Voltage [in V] | 24 |
|---|
| Packaging | PE bag |
|---|---|
| Part of delivery | seal |
| Seal type | seal |
|---|
| Case color | Black |
|---|---|
| Contact surface | nickel (Ni) |
| Cover material | resistant to metal |
| Case material | reinforced composite |
| Contact termination surface | standard (CuZn) |
| Number of contacts | 07 |
|---|---|
| Properties of plug-in contacts | flat clamp |
| End of contact | plug-in contact |
| No. of seal outputs | single |
| Protection | IP 44 |
|---|
| For cable diam | 9.50mm - 12.50mm |
|---|---|
| Size of plug-in contacts | 6.3 mm |
Data sheet
