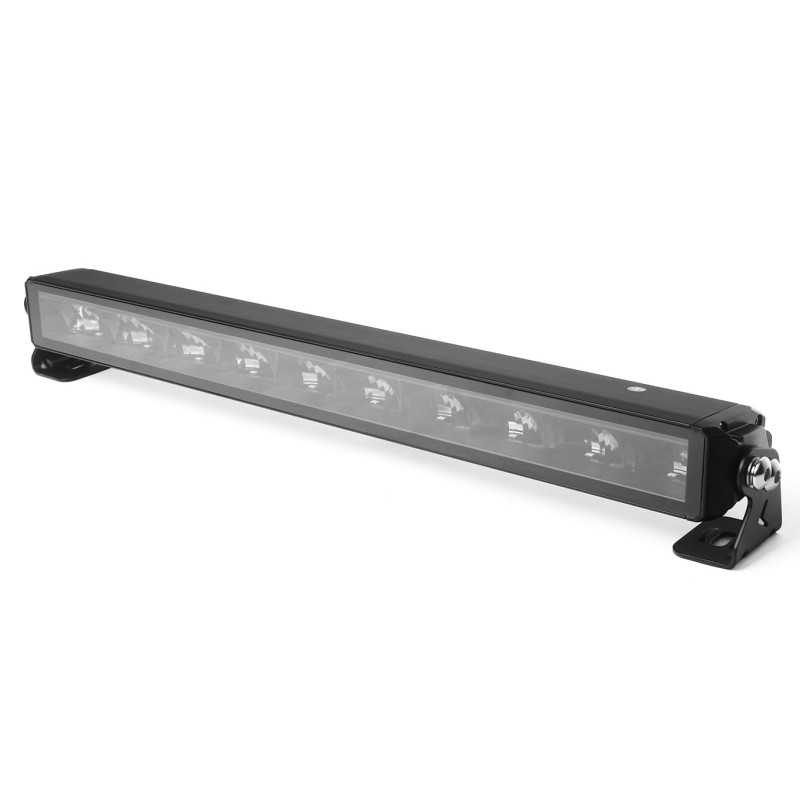

Headlight LED 6500 lm 12-24V homologation 56cm

HOMOLOGATED HIGH-BEAM + POSITION HEADLIGHT
mounting on side console or rear brackets
for voltages from 10V to 30V
luminous flux of high beam: 6500lm
luminous flux of white position light: 120lm
Road illumination at a distance of 420m: 1lux
Reference number: 45
Beam angle: 10 degrees
light color 6000K (daylight)
LED chips 10x6W
reverse polarity protection Helvetica,sans-serif;font-size:13px;background-color:#ffffff;" /> current consumption at 13.8V (high beam): 4.6A (63.5W)
current consumption at 13.8V (position light): 0.4A (5.5W)
Protection level: IP68 / 69K
aluminum alloy body
size: 545*50*65mm
Front cover material: Lexan polycarbonate (PC)
supply wire length 40cm
The headlight is equipped with a DEUTSCH connector.
connection:
minus - black wire
high beam - red wire
position light - yellow wire
operating temperature range: -40  C to +60 style="font-family:Poppins,Arial, Helvetica, sans-serif;font-size:13px;background-color:#ffffff;"> C
weight: 2150g
Lifespan: 50,000 hours
certification R149 (R112+R7), R10, ECE, RoHS, CE
