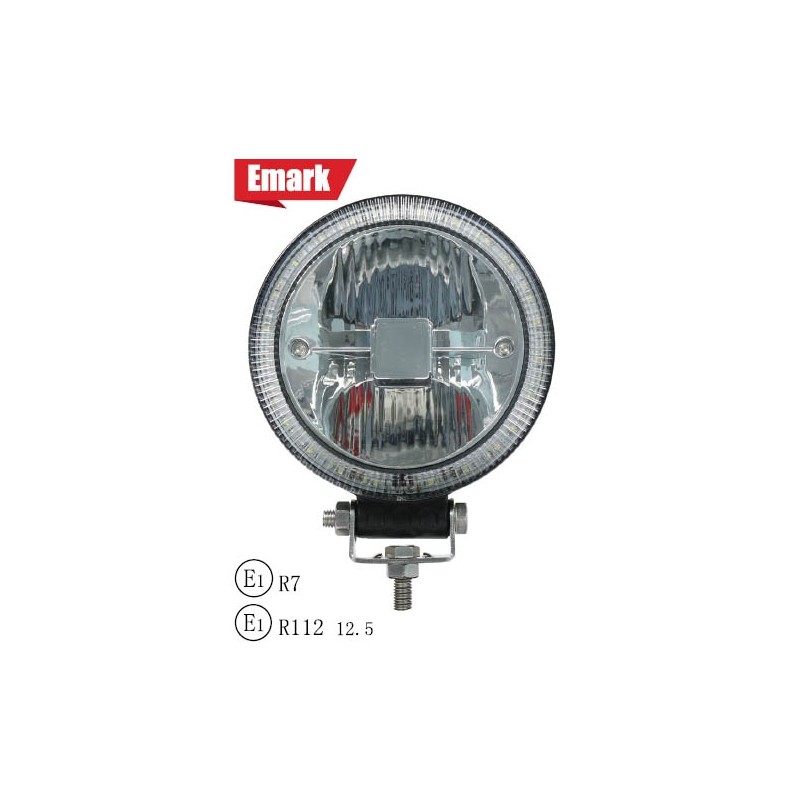

High beam LED 1400 lm 12-24V homologation 13cm

HOMOLOGATED HEADLIGHT WITH ANGEL EYE RING (E1-R112)
for voltages from 10V to 30V
luminous flux 1400lm
radiating angle horizontally 10 degrees
light color 6000K (daylight)
2xLED 10W CREE
degree of protection: IP67
aluminum body: diameter 127mm (without console) x depth 61mm
headlight body: aluminum ADC12
lens material: PC
bracket mounting, M10 screw
current consumption at 13.8V: 1.2A + 0.1A (headlight + ring)
certification R112, R7, ECE, RoHS, CE
wiring:
black wire...minus
white wire...plus (high beam)
green wire...plus (circle)
